• Hoisting Carbonization Furnace

Hoisting Carbonization Furnace


  • Output – 1-5 tons/day
  • carbonization time – 4-8 hours
  • Voltage – 220v/380v, customized
  • Material – Q245 R steel or carbon steel
  • Warranty – 1 year
  • Application – wood, log, rice hull, straw, coconut shell,palm kernel shell, bamboo, e-waste, etc.

Share

Hoisting carbonization furnace, is also known as vertical biochar making equipment, is popular with small scale charcoal manufacturing businesses. Because it has features of high carbonization rate, no smoke, high efficacy, economical price, etc. In addition, using it, you can turn various biomass into charcoal quickly. Here, BM can provide you with quality hoisting charcoal furnace.

What is the design of hoisting carbonization furnace?

Outer stove

The outer stove mainly consists of refractory bricks and steel plates. The furnace hull use Q245 steel or carbon steel as materials. It has high strength and excellent wear resistance. In addition, refractory bricks make the machine withstand the high temperature of 600℃. So it can help you turn biomass waste into charcoal smoothly.

Inner stove

Then there is also an inner stove in the middle of the refractory brick layer. When carbonization, your raw materials are in the inner stove. For one thing, the indirect-fired charcoal making method is beneficial for improving carbonization rate. For another, only by using hoisting system to replace inner stove, you can start a new batch charcoal making. In general, you can batch three inner tanks for a hoisting biochar furnace.

Combustible gas treatment system

In order to meet your requirements of reducing pollution and low energy consumption, we especially add professional charcoal dust collectors and cooling system for the machine. They can not only make carbonization generated combustible gas suitable for using as heat source, but also turn waste gas into the international dischargeable standard.

What materials can vertical carbonization equipment process?

In terms of materials types, the hoisting charcoal making machine can prepare biochar from various materials. Especially when using bamboo, logs, coconut shell, etc as materials to make charcoal. Because of large granularity, you can place them into inner stove and start your biochar making process directly. However, when you manufacture biochar from small particle size materials, including sawdust, rice hull, straw, etc. You must turn them into bars with suitable briquette press equipment.

Tip: Whether which method you adopt, the moisture of your material before processing with vertical carbonization furnace must be lower than 15%.

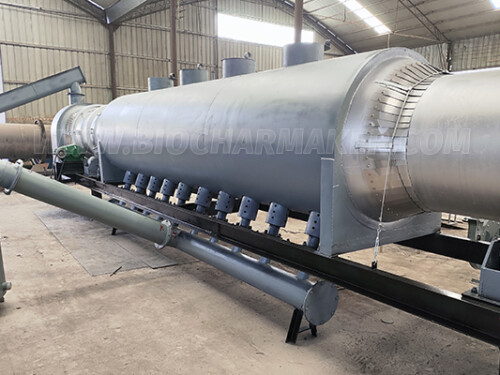

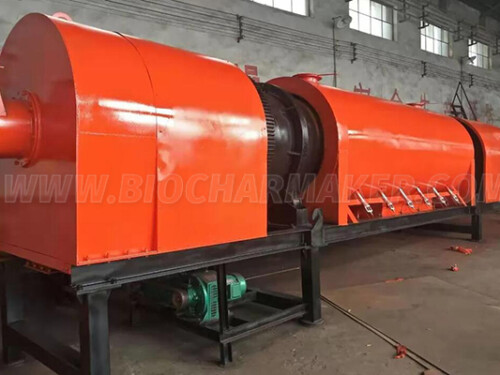

Besides, hoisting carbonization furnace, we also have continuous rotary kiln and horizontal biochar furnace for your choice. You can choose the most suitable one for your biomass to biochar project according to your actual conditions.
