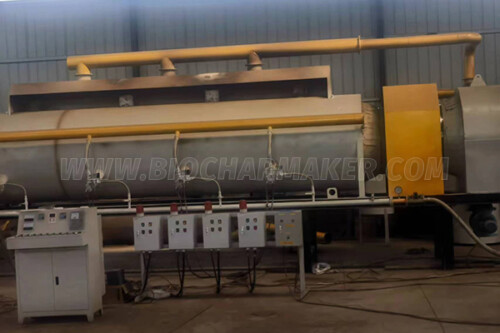

• Horizontal Carbonization Furnace

Horizontal Carbonization Furnace


  • Output – 300-6000 kg/h
  • Power – 5.5-75 kw
  • Voltage – 220v/380v, customized
  • Material – Q245 R or stainless steel
  • Warranty – 1 year
  • Application – wood, log, rice hull, straw, coconut shell, palm kernel shell, bamboo, e-waste, etc.

Share

Horizontal carbonization furnace is an ideal choice for small scale charcoal making. Whether you want to turn wood, coconut shell, bamboo, machine-made charcoal, etc into biochar, it can fully meet your requirements. In addition, it has a favourable price, which is the main reason why being popular with mass charcoal manufacturers.

Working principle of horizontal carbonization furnace

Our horizontal biochar furnace mainly adopts dry distillation method. After putting raw materials in the carbonization chamber and closing the sealing door, the temperature inside will increase gradually under the action of the heating system. In addition, with an environment of oxygen lacking, wood begins to undergo a pyrolysis reaction decomposes into charcoal you need. Then after cooling, you can get quality commercial biochar products.

How to keep the high temperature in horizontal biochar furnace?

High-temperature rock wool sealing

The furnace door is sealed with high-temperature rock wool. Therefore, there is no air entering and no heat escape. This is also beneficial for improving the charcoal manufacturing rate.

Lightweight insulation material mezzanine

The carbonization equipment has a three-layer structure. Besides hull and lining, we also add a lightweight insulation material in the middle to keep the temperature in the furnace.

Stable heat source

For high temperature environment creation for biochar production, stable heat source is important. During horizontal carbonization, it is easier to get. Because after a period of working, there is a large scale combustible gas generated. Only treat it with professional dust collectors, you can use it as biochar making heat source directly.

High strength equipment material

Moreover, if you want to make charcoal in a high temperature environment, it is also necessary to consider the equipment material. Our horizontal carbonization furnace mainly uses Q245 R steelas material, which has a high strength and can withstand the high temperature of 600 ℃.

Is there a design of horizontal biochar furnace for cooling?

As mentioned above, it is indispensable to cool finished charcoal. Because it can greatly reduce the possibility of biochar re-ignition when exposure to oxygen after emission. Then how horizontal charcoal making system cooling biochar? This carbonization machine from BM mainly makes use of the gap between the interlayers to cool finished biochar with water to naturally.

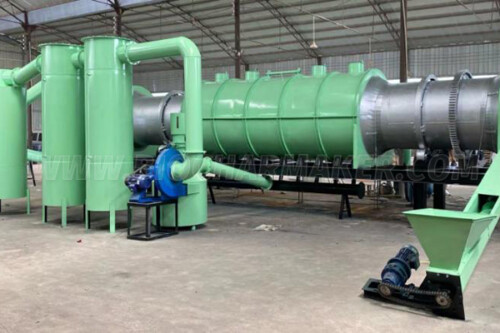

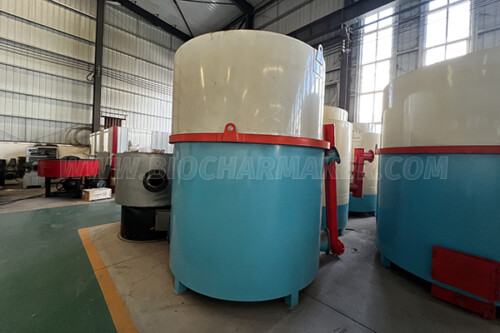

Besides, horizontal carbonization furnace, we also have continuous rotary kiln and hoisting biochar tank for your choice. You can choose the most suitable one for your biomass to biochar project according to your actual conditions.
