Solar Panel Recycling Machine


  • Output – 300-2000 kg/h
  • Separation Rate – 99%
  • Final Product – Copper, aluminum, silicon, glass, silver, etc
  • Warranty – 1 year
  • Application – e-waste recycling, old solar panel recycling

Share

If you want to dispose of old solar panels and recycling copper, aluminum, silicon, glass, etc, there are two solutions are popular with businesses. Economical solar panel waste disposal system, which mainly contains multiple crushing and separation. But, provided you need to turn EV material into useful products – oil, you can choose PV panel recycling line with pyrolysis machine. Besides, we also can offer you suitable equipment for solar panel dismantle. As a professional e-waste disposal equipment manufacturer, we will try our best to offer you suitable solar panel recycling machine and help you set up your solar panel recycling plant successfully.

How do I dispose of old solar panels?

In order to fully meet your requirements for solar panel waste disposal, we especially deign 2 types of solar panel recycling machine systems for your choice.

Crushing and separating – economical solar panel recycling machine

When you need a low cost solar panel disposal plan, we recommend you buy the PV panel crushing and separation line. In this process, solar panel waste management needs 5 steps and machines:

  • Double shaft shredder: Shredding large solar panel into 20-30 mm small ships.

  • Hammer crusher: Further break down small PV panel into smaller particles, about 20 meshes. In this way, various materials will disperse separately.

  • Air separator: Because of difference in weight of plastic and metal, this machine can make use of air to screen out light plastic materials from solar panel waste easily.

  • Double shaft shredder: Shredding large solar panel into 20-30 mm small ships.

  • Hammer crusher: Further break down small PV panel into smaller particles, about 20 meshes. In this way, various materials will disperse separately.

  • Air separator: Because of difference in weight of plastic and metal, this machine can make use of air to screen out light plastic materials from solar panel waste easily.

Pyrolysis and separating – recycling metal and turn plastic into oil

Can we turn plastic into useful products while recycling silicon and mental from PV penal waste? Of course. You can choose our pyrolysis and separation system for old solar panels recycling. It can turn plastic from PV penal into oil and no e-waste crusher involved. The detailed photovoltaic panel recycling process is as follows:

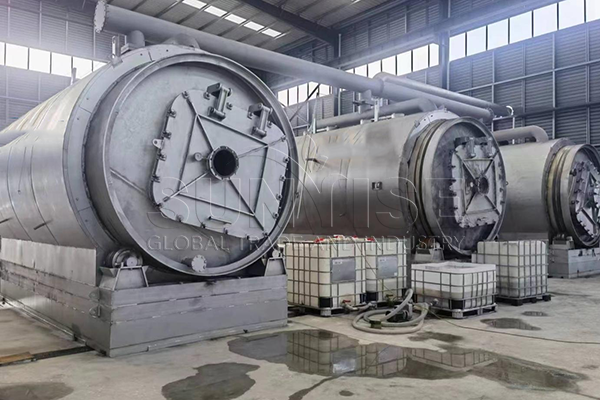

Pyrolysis machine for old solar panel recycling

Processing solar panel with pyrolysis equipment

Under the action of high temperature – 600 ℃, solar penal will break into copper, silicon, glass and EV material. At the same time, EV material will cause pyrolysis reaction and turn into oil gas.

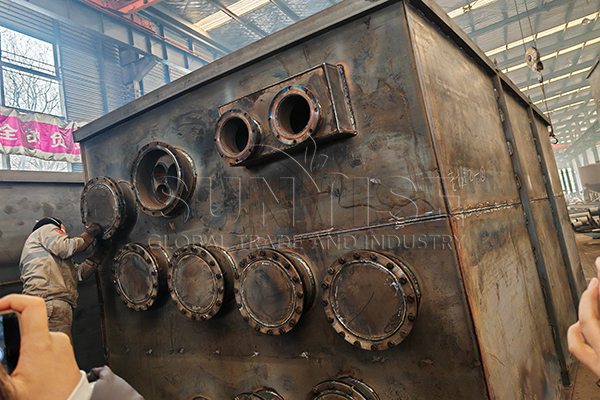

Cooling machine to turn PV panel EV material into oil

Cooling gas generated by EV material into liquid oil

On the one hand, EV material gas will pass water cooling machine. At that time, the gas will convert to liquid oil gradually and be stored in oil tank.

linear vibration screener for sale

Sieving out silicon by vibration screen

On the other hand, other solid materials will be transported to vibration screen. This solar panel disposal equipment can separate large silicon and glass chips according to particle size difference.

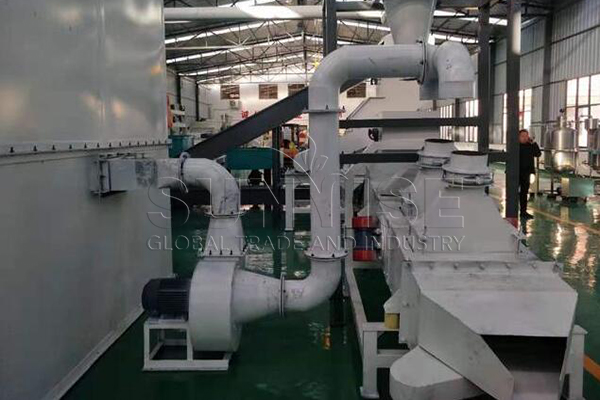

Air separator for plastic and metal screen in PV panel recycling

Separating smaller silicon from dust and glass from metal

In addition, for further separating smaller silicon from glass, you can add an air separator after vibration screen. Moreover, it also can remove dust generated in solar panel disposal.

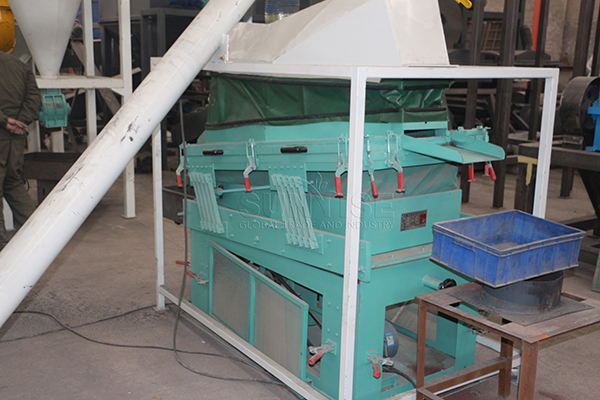

Gravity separator for recycling copper from solar panels waste

Recycling high purity copper from old solar penal

Finally, to recycle copper from left glass, you can use a color sorting machine. This equipment adopts photoelectric detection technology to sort out copper from glass. The copper recycling rate can reach 99%.

contact us

How much does the solar recycling machine cost?

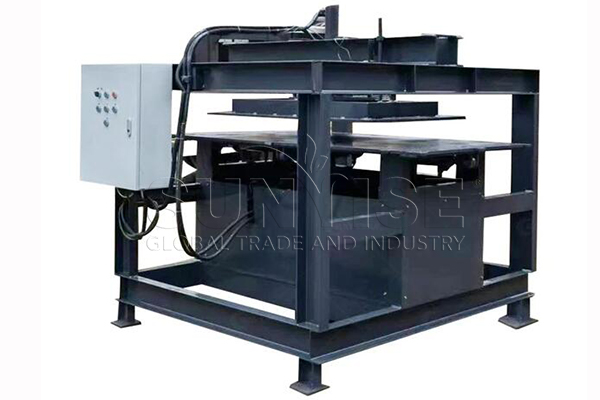

Why solar panel dismantle machine is necessary before recycling?

Before disposing of PV panel with the above two solar panel recycling machine systems, it is advisable to dismantle frame first. This is beneficial for improving the efficiency of material recycling from old solar panel. For one thing, it can dismantle aluminum frame from the panel in a short time. For another, this can reduce the time of aluminum separation from the PV board.

How much does it cost to recycle PV panels and reuse?

The cost to dispose of solar panels is important. However, the solar panel recycling machine price for your project usually is not fixed. Because it will change with your capacity, material state, equipment configuration, etc. You can send us your requirements in details buy email, we can design a customized solar panel recycling system according to your actual conditions including budget. Of course. It contains quality PV disposal equipment and favourable price.

Solar Panel Recycling Cost

How to setup a solar panel recycling plant?

Besides quality PV panel recycling machine, you also need to focus on the follow 3 aspects when setup a solar panel recycling plant.

Besides solar panel recycling machine, we also can offer you many other solutions to dispose of e-waste. Such as lithium battery recycling system, PCB circuit board disposal line, etc. Welcome to contact us at any time.
